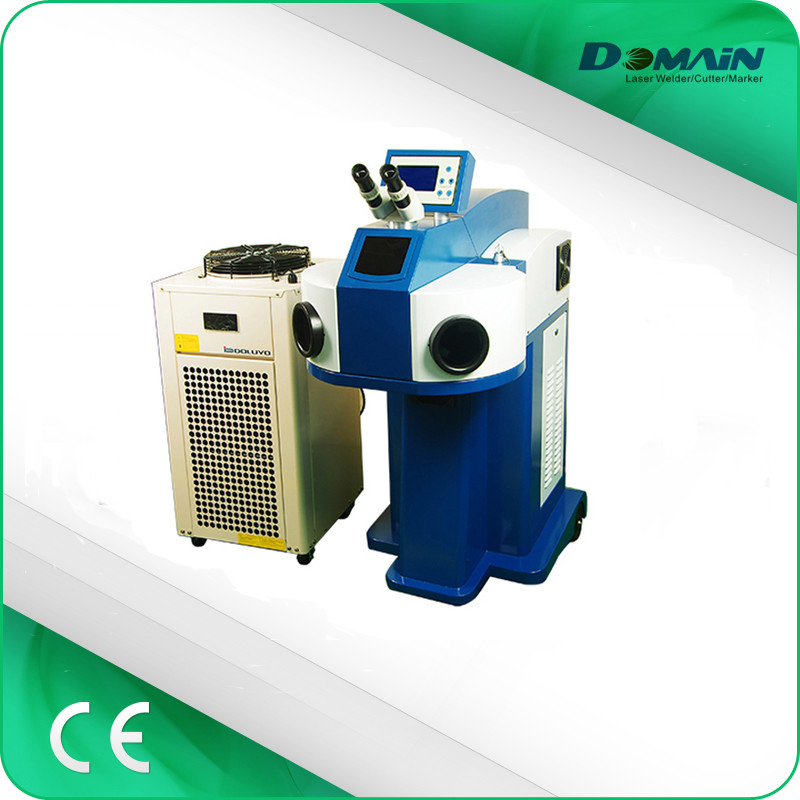

200W Laser Welding Equipment For Jewelry Repairing

Brand Name : Domainlaser

Model Number : CY-WY200

Certification : CE,ISO,FDA,CCC

Place of Origin : China Wuhan

MOQ : 1 unit

Price : 3999USD/UNIT

Payment Terms : L/C, T/T, D/P, D/A, Western Union, MoneyGram

Supply Ability : 200units per month

Delivery Time : 3-7 working days

Packaging Details : plywood cases

Pulse width : 0.1-20ms

Condition : 100% new

Wavelength : 1064 Nm,1064nm Laser Welding Wire

Warranty : One year

Single pulse energy : 100J

Focal spot diameter : 0.1-3.0mm

Dimensions : 840x450x500mm

Product name : Best Quality Small jewelry laser welding machine for Jewelry jewellery,gold soldering machine

Cooling system : Water Cooling,Water Chiller

Application : Jewelry Welding Products,Metal Stainless Steel laser welder,Jewelry Dental Welding,jewelry golf metal welding

Pulse frequency : 0.1-100Hz

Power supply : 220V/50/60HZ

After-sales service provided : Engineers available to service machinery overseas,Overseas service center available

Laser wavelength : 1064nm Laser Soldering,1064nm Channel Letter Welding Machine

Welding depth : 0.5-1.2mm

Key word : laser welding machine

Laser type : YAG Laser Welding Machine

Keywords : laser welding machine for jewelry,High-quality Laser Welding Machine,Continuous Fiber Laser Welding Machine

Contact Now

200W laser welder laser welding repairing machine for Gold silver jewelry thin metal jewelry

200W Laser Welding Equipment For Jewelry Repairing200W Laser Welding Equipment For Jewelry Repairing200W Laser Welding Equipment For Jewelry Repairing200W Laser Welding Equipment For Jewelry Repairing200W Laser Welding Equipment For Jewelry Repairing200W Laser Welding Equipment For Jewelry Repairing200W Laser Welding Equipment For Jewelry Repairing

200W Laser Welding Equipment For Jewelry Repairing

Technical Data:

Model CY-WY200
Rated output power 200W
Maximal pulse power 70J
Laser wavelength 1064nm
Beam radiation angle ≤8mrad
Power instability ≤±3%
Facular diameter ≥0.3mm
Pulse breadth 0.3ms-20ms
Pulse frequency 0.1-200Hz
Light focus cavity Combined gold-plated reflector cavity
Pump source Pulse xenon lamp
Laser crystal Nd:YAG
Location way CCD surveillance system (Selective collocation)
CNC system PLC/ 2-axis PC(3-axis selective)
Working table stroke dimension 200*100*150mm (selective collocation: z-axis manually)
Location accuracy 0.02mm
Repeating accuracy ±0.01mm
Working table load 50Kg
Working voltage 220V/three-phase/50Hz/40A
Cooling mode Outside water cooling

200WATT JEWELRY LASER WELDER

1. Widely applied in the fields of aeronautical and space, mechanism, electron, communication, dynamic,
chemical, automobile manufacture and other industries.
2. The welding of automobile spare parts, such as hydraulic pressure jib, gasoline cleaner, left gas sensor,
electromagnetic valve, and drive starting stator.
3. The close welding of lithium ion batteries, such as mobile phone batteries and power batteries.
4. In metallurgy industry, such as silicon steel plate welding.
5. The welding of sensor and engine lamina in application military industry.
6. The precise spot welding of the electronic components and close welding of relay.
7. In electrical equipments industry, such as silicon steel sheet welding, the rotor of the air-conditioner
drive welding, and creepage protection welding.


This series of models adopt integrative design, with compact and beautiful structure, high output power,
good energy stability, excellent beam mode, simple and convenient operation, reliable performance, wide
application and other characteristics.
It adopts advanced Germany combined gold-plated reflector cavity laser technology, and use special beam
election mode and shaping technology, which ensure a high output power and excellent beam mode. There
is double-pulsed Xenon lamp incenting, constant current laser power, programmable pulse and intelligent
zed management system, also the automatic protection system for disoperation and water lack from super
temperature. It is equipped with PLC programmable controller or PC control (two-axis or 3-axis) working
tables, and universal X/Y-axis two-dimension automatic moveable platform. It uses the semiconductor red
light to direct position. The focus and the deflection angle of the laser can be moved manually from top to
bottom. It is optional to select the close room or air confined space, manual descending and ascending
platform, automatic rotary system and coaxial surveillance system, and other accessories.

Welding samples for jewelry laser welder

200W Laser Welding Equipment For Jewelry Repairing
