1070nm Raycus Laser Welder Machine For Stainless Steel Welding

Name: 1070nm Raycus Laser Welder Machine For Stainless Steel Welding
Brand: Domainlaser
Price: 11999 USD

Brand Name : Domainlaser

Model Number : CY-W1000FS/CY-W1500FS

Certification : CE,CCC,ISO9001

Place of Origin : China Wuhan

MOQ : 1 unit

Price : 11999usd/per unit

Payment Terms : L/C, D/P, T/T, Western Union, D/A

Supply Ability : 200units per month

Delivery Time : 3-7 working days

Packaging Details : plywood cases

Voltage : 220V/380V

Warranty : 2 years

After-sales service provided : Engineers available to service machinery overseas,Overseas service center available,Free spare parts,Video technical support

Usage : Carbon Steel welding,outdoor work with power source,weld materials of stainless steel

Rated duty cycle : 100%

Arc current : 20-400A

Pulse frequency : 50/60 HZ

Motor type : AC Motor

Fiber laser welder applications : Metal Welding

Fiber laser welder condition : New

Metal welding diameter : 0.2-1.8mm

Fiber laser source : RAYCUS/IPG/JPT

Fiber laser source power : 1000watt/1500watt/2000watt

Fiber laser name : Fiber Handheld Laser Welding Machine

Fiber laser welder : OEM Fiber Laser Welding Machine

Contact Now

2020 China popular selling laser welder for stainless steel, aluminum, copper with high speed and smooth surface

Features :

1.The energy density is high, the heat input is low, the amount of thermal deformation is small, and the melting zone and the heat-affected zone are narrow and deep. Easy to operate :Power on --handheld laser welding head -- work

2.High cooling rate,which can weld fine weld structure and good joint performance.

3.No any consumable parts , Maintenance free .Compared with contact welding, laser welding eliminates the need for electrodes,reducing daily maintenance costs and greatly increasing work efficiency.

4.The weld seam is thin, the penetration depth is large, the taper is small, the precision is high, the appearance is smooth, flat and beautiful.

5. Safe laser welding head .,No laser out if it face to the skin

6. Delivery cable can be 15m , very good for large size sheet welding . The laser is transmitted through fiber optics and can be used in conjunction with a pipeline or robot.



RAUCUS LASER SOURCE

100,000 hours of lifetime, free maintenance;
High elector-optical conversion efficiency (up to 25-30%), excellent beam quality, high energy density, and reliability, a wide modulation frequency;
Low energy consumption, only 20%-30% of the traditional CO2 machine.

LASER WELDING HEAD



It is easy to use and adopts double protective layer to protect the lens, if the first lens burns, the customer will find out in time and replace it with a new one, so that the focusing lens will not burn.


Specification
  	 			Model
 			CY-WF1000S/CY-WF1500S

 			Laser source
 			Raycus/Max/Reci

 			Laser power
 			1000w

 			Output Power Tunability (%)
 			10-100%

 			Laser head
 			Handheld

 			Laser wavelength
 			1070nm

 			Fiber diameter
 			100μm

 			Frequency of pulse
 			50~20khz

 			Fiber laser optic length
 			5M

 			Spot Size
 			Φ0.2-1.8mm

 			Welding depth
 			0.8-1mm

 			Water chiller
 			S&A 1000w

 			Total power
 			6KW

 			Ambient Temperature
 			10℃~40℃

 			Power supply
 			AC 230V±10%, 50/60Hz, Single Phase

 			NW
 			282kg


  	 			Maximum welding thickness

 			Power
 			DH-1000W
 			DH-1500W
 			DH-2000W

 			Carbon steel
 			≤3mm
 			≤4mm
 			≤5mm

 			(max thickness)
 			(5mm)
 			(6mm)
 			(8mm)

 			Stainless steel
 			≤3mm
 			≤4mm
 			≤5mm

 			(max thickness)
 			(5mm)
 			(6mm)
 			(8mm)

 			Aluminum
 			≤1.5mm
 			≤2mm
 			≤3mm

 			(max thickness)
 			(2mm)
 			(3mm)
 			(4mm)


Qur Service&Advantages
Our Service 1.Two years warranty for this fiber laser machine and fiber laser parts ;One year warranty for other machine and parts. 2.24 hours professional online technical support. 3.Skilled engineer will help customer to solve the problem by TM ,Whatsapp in time when problem happen. 4.Free software update. 5.Lifelong maintenance and spare parts supply. Our Advantages 1.Alibaba Authentication Enterprise 2.12Years Export Experience 3.20Years Manufacture Experience 4.OEM&ODM Service 5.24Hours Online Service 6.Dealer network all over the world

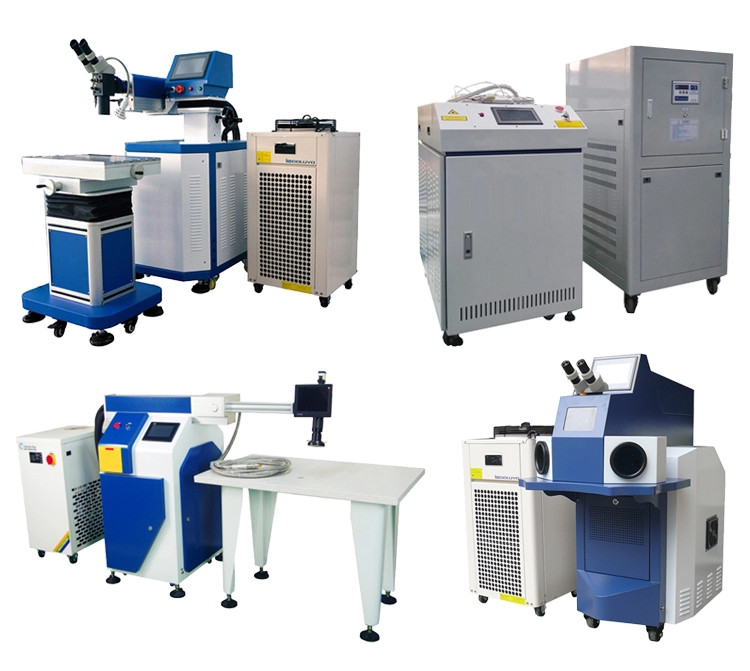

Fiber laser welder series

1070nm Raycus Laser Welder Machine For Stainless Steel Welding
