DC Motor 1064nm Fiber Laser Welding Machine For Galvanized Sheet

Name: DC Motor 1064nm Fiber Laser Welding Machine For Galvanized Sheet
Brand: Domainlaser
Price: 11999 USD

Quality DC Motor 1064nm Fiber Laser Welding Machine For Galvanized Sheet wholesale

Brand Name : Domainlaser

Model Number : CY-WF500/CY-WF600

Certification : CE/FDA/ISO

Place of Origin : China Wuhan

MOQ : 1 unit

Price : 11999usd/per unit

Payment Terms : L/C, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200units per month

Delivery Time : 3-7 working days

Packaging Details : plywood cases

Voltage : 380V+/-15%

Warranty : 18 Months

After-sales service provided : Engineers available to service machinery overseas,Overseas service center available,Free spare parts,Video technical support

Usage : Welding,Carbon Steel welding,outdoor work with power source,weld materials of stainless steel

Dimensions : 430*210*380

Arc current : 20-400A

Pulse frequency : 50/60 HZ

Motor type : DC MOTOR

fiber laser welder : Easy to Operate

Applicable : Building Material Shops, Manufacturing Plant

Laser spot : 0.2 ~ 3.0 mm

Contact Now

Word Advertisement fiber Laser Welding Machine for Metal and Galvanized Sheet

DC Motor 1064nm Fiber Laser Welding Machine For Galvanized Sheet

Introduction:

With the booming of global advertising industry, metal letters has been more and more popular because of its colorfulness, attractiveness, heating-proof, frozen-proof, no deformation, no fadedness (8-10 years color preservation), corrosion proof, rain-proof, and spontaneous combustion proof and some other good features. AD metal letters are made of stainless steel, aluminum, copper or other metal sheet being cut, polished, hemmed, and welded. The core feature of AD metal letters is being rustproof, with long life span and dimensional looks. It’s widely used in LED illuminated billboard, exterior/interior signs, branding, door plate and etc.

Parameters for the fiber laser welder

Model No.	CY-WF400	CY-WF500
Laser Power	400W	500W
Laser Source	Nd3+: YAG bar Φ8*145mm	Nd3+: YAG bar Φ8*155mm
Laser Wavelength	1064nm
Laser Tube Qty’	1 pc	2 pcs
Single-pulse Energy	80J	120J
Pulse Duration	0.2~20ms
Frequency Range	0.1~50Hz	0.1~100Hz
Workable Current	50~200A	50~300A
Welding Spot Diameter	0.3~1.0mm	0.3~1.2mm
Table Size	W1000*L750mm
Laser Arm Stretch	total length 1370mm,strech distance 750mm
Fiber Cable Length	5 meters (max work distance of pen mode)
Settings Memory	100 groups
Control Panel	7” color LED touch screen
Language Option	English/Chinese
Power Supply	220V/50Hz (220V/60Hz optional)	380V/50Hz (380V/60Hz optional)
Power Consumption	Laser: 8KW , Chiller:1KW	Laser:14KW , Chiller:3.3KW
Dimensions(mm)	Laser &table: 17307501250 Chiller: 480580800 (1HP)	Laser & table: 17307501250 Chiller: 11006501350 (3HP)
Net Weight	305KG	400KG
Package Volume	2.5CBM	3CBM
Package Weight	345KG	450KG
Applicable Materials	Stainless Steel, Titanium, Iron, Galvanized sheet	Stainless Steel, 1000 Serial Aluminum, Copper Alloy, Titanium, Iron, Galvanized sheet
Material Thickness	<=2.5mm	<=3mm

Our Advantages

Advantage:

Double laser welding path with 5m length fiber laser cable, which brings large convenience for your job.
Laser head can electrically move back and forth, up and down, left and right and rotate 360 degree.
Heat affected zone is small. The work piece surface will not deformed.
For letters in the advertising industry, there is specially lengthened optical path and the telescopic scope can be added to 800mm.
There is no raised spot after welding.No requirement of polishing process.Saving time and labor.The appearance is beautiful and tight.
There is CCD monitor. The welding effect is more clear and intuitive.
The specially designed long focal distance lens F=200mm to meet the demand for ultra-high font welding.

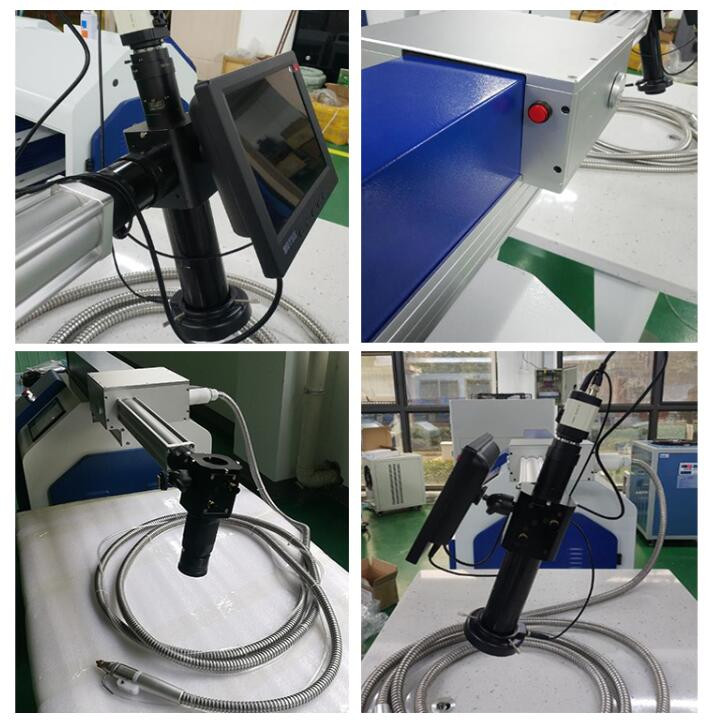

Fiber laser welder details

DC Motor 1064nm Fiber Laser Welding Machine For Galvanized Sheet

Applicable Industry:

Widely applied in the fields of aeronautical and space, mechanism, electron, communication, dynamic,Chemical, automobile manufacture and other industries.2. The welding of automobile spare parts, such as hydraulic pressure jib, gasoline cleaner, left gas sensor,Electromagnetic valve, and drive starting stator.
The close welding of lithium ion batteries, such as mobile phone batteries and power batteries.
In metallurgy industry, such as silicon steel plate welding.
The welding of engine and engine lamina in application military industry.
The precise spot welding of the electronic components and close welding of relay.
In electrical equipments industry, such as silicon steel sheet welding, the rotor of the air-conditioner Drive welding, and creepage protection welding.

Applicable Materials:

Materials that can be welded are extensive: cold work alloy steel, hot work alloy steel, nickel tool steel, steel alloy, high tenacity aluminum alloy, etc. Other metals like gold, silver, brass, aluminum-magnesium alloy, titanium, and platinum are also applicable.

Welding samples for fiber laser welder

DC Motor 1064nm Fiber Laser Welding Machine For Galvanized Sheet
