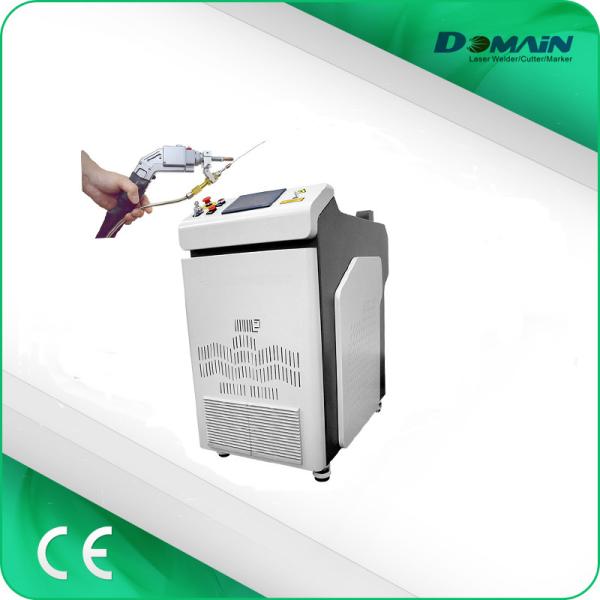

Handheld Wobble Head Fiber Laser Welding Machine For Aluminum

Name: Handheld Wobble Head Fiber Laser Welding Machine For Aluminum
Brand: DOMAINLASER
Price: 2999 USD

Quality Handheld Wobble Head Fiber Laser Welding Machine For Aluminum wholesale

Brand Name : DOMAINLASER

Model Number : CY-W1000FS/CY-W1500FS/CY-W2000FS

Certification : CE,ISO9001,ROHS,GS

Place of Origin : CHINA

MOQ : 1 unit

Price : 2999-12999usd

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100sets/per month

Delivery Time : 3-7 working days

Packaging Details : Plywood cases

Voltage : 220V/380V

Condition : New

Warranty : 2 years

After-sales service provided : Engineers available to service machinery overseas,Overseas service center available,Free spare parts,Video technical support

Usage : Welding,Carbon Steel welding,outdoor work with power source,weld materials of stainless steel

Laser wavelength : 1070nm

Application material : Metal Stainless Steel Aluminum

fiber laser name : Fiber Welding Machine

Laser power : 1000W /1500w

Applicable industry : Building Material Shops, Machinery Repair Shops, Farms,

Guiderail Brand : HIWIN

Contact Now

Handheld automatic fiber laser welding machine for stainless steel iron aluminum copper brass with Wobble head

Fiber handheld laser welder Specification:

Model No.	CY-W1000FS
Product Name	Hand-held fiber laser welding machine
Wavelength	1070+/-10 nm
Laser power	800W,1000W,1500W
Power adjustment	10~100%
Laser spot diameter	QBH
Fiber length	Standard 10m or specify
Working methods	CW/ Pulse/QCW mode
Speed range	0~120mm
Weld thickness	0.5-6mm
Welding gap requirement	<=1mm
Modulation frequency	20Khz
Turn on/off time	20Us
Working temperature	15-35℃
Power supply	220V/50Hz/30A
Chilling methods	Water chilled inbuilt
Machine size	990X540X1030mm
Net weight	180kg

Handheld 1000w Raycus channel letter optical fiber welder aluminum ss laser welding machine for saw blades chair table

Dowin laser welder welding machine adopts the latest generation of fiber laser and is equipped with self-developed welding head. It has the advantages of simple operation, beautiful weld seam, fast welding speed and no consumables. It can perfectly replace the traditional metal materials such as thin stainless steel plate, iron plate and galvanized plate.Argon arc welding, electric welding and other processes. The equipment has high reliability and can be continuously and stably processed in 24 hours. The compact design ensures a minimum floor space and is easy to move.

1000watt fiber laser welder Applied materials

Stainless steel: 316/304/430/201 two pieces stacked together can be up to 1mm thick each direct breakdown welding, butt welding can be two pieces together can be up to 5mm thick direct welding, sealing welding thickness in the range of 0.3mm-5mm can be welded, the welding tension can be up to 2 tons, sealing pressure test can be up to 20 kg.2. Iron: The process and parameters are the same as those of stainless steel.
Steel: The process and parameters are the same as stainless steel.
Copper: 59/62 except copper, all other copper can be welded.
Aluminum: 1 series, 2 series, 3 series, 4 series, 5 series, 6 series and 7 series can be easily welded.
Titanium and molybdenum: can be welded.
Tungsten: Not weldable.
All other metals can be welded, not to mention.
Mixed weldable: copper and stainless steel, galvanized, nickel plated, etc.

Applicable industry: for mobile phone case, bracket, electronic communication, hardware, medical equipment, instrumentation, jewelry, sports supplies.Including mobile phone shield, mobile phone housing, MP4 housing, sensors, metal electrical housing, hard disk, micromotor, optical fiber coupler, lithium battery, clocks, glasses, electronic components, handicrafts and other products.

Fiber handheld laser welder details
